RFID READER

리더기

SRWMX900

  • Microsoft Surface Go 2와 만남으로 물품관리의 한발 앞선 토털 솔루션을 제공하는 Wizntec RFID Reader SRWMX900
    • 취득관리/운용관리

      K-Edufine RFID 물품관리시스템(물품관리업무 및 전자태그 발행)

    • 제물조사/처분관리

      RFID 물품관리시스템 물품 이미지 추출 및 사전조사(보유물품이밎화 및 추가 물품관리 보조업무 등)

    • 물품현황/물품검색

      K-Edufine RFID 물품관리시스템 자료실(기존 물품관리 대장 및 참고보조자료실)

  • 제품 개요

    MS 서피스고 2 태블릿을 채택하여 8인치 제품의 터치감이나 속도를 탁월히 개선하였고,
    10인치 대화면을 채택한 SRWMX900제품으로 태그발행, K-에듀파인 물품관리업무, 재물조사등을
    한번에 해결 할 수 있게 하여 업무의 효율성, 편리성을 크게 개선하였습니다.
    신제품으로 약 300개 학교 기관에서 사용중입니다.

  • 제품 사양

    RFID Reader SRWMX900 “MS 서피스고2 적용제품”

    ITEM SPECS
    메인 시스템 운영체제 Windows 10 in PRO Mode S mode
    Main Processor

    Intel® Pentium® Gold 4425Y Processor(M3 2.2Ghz)
    메모리 4G, Ti Cortex-M4 Core, 120MHz/150DMIPS, TI-RTOS 256KB SRAM, 1,024KB Flash

    Memory 4GB LPDDR3 SDRAM(+256KB SRAM)
    RAM 64GB eMMC(+1GB Flash)
    화면 크기/해상도 Screen : 10.5" Pixel Sense™ Display, Intel® HD Graphics 615,
    Resolution : 1920 X 1280 (217 PPI), Touch : 10-point multi-touch
    UHF RFID 모듈 RFID UHF 리더기 모듈 (Impinji R2000이상) Frequency : 917~923Mhz, 30dbm, Protocol : EPC Gen2 ISO 1800~6c, RF Power : 1W, Air Protocol : 1~30db Step, Antenna Gain : 최소 3~5m 이상
    LAN(Wifi), 블루투스 IEEE 802.11 a/b/g/n/ac, Bluetooth Wireless 4.1 technology, BT4.2 BLE(Chipsen Bot-nLE521)
    I/O 연결 USB 2.0과 3.0 지원 스피커 1 X USB-C, USB 3.0(type C 1개, type A 1개) / 유선 LAN 지원, USB2.0 type 1개: 충전 전용
    Buzz : -20 ~ 70deg magnetic buzzer,
    Phisical buttons : Volume, Power
    배터리 3.2V, Lithium-ion Up to 9 hours of video playback
    Li-Polymer 3411mAh(26.12 Wh / 7.66V) (10,340mA)
    S/W K-에듀파인 물품관리시스템 RFID 단말기 연계기능검사 결과 : 적합
    KC인증 : R-R-WNT-SRWMX900, NIPA 무선주파수 기능검사 : 통과
    Security TPM 2.0 for enterprise security, Enterprise-grade protection with Windows Hello face sign-in
    Sensors Ambient light sensor, Accelerometer, Gyroscope,
    Battery Charging & Power On/Off Indicator
    Dimensions, Weight 258mm X 188mm X 28mm, 622g
    보증기한 1-year limited hardware & Software warranty
    악세서리 MS 키보드, 가방, 거치대, 핸드스트랩 등
  • 인증서

SRW900

  • Product performance
    • Intel Atom X5 Cherry Trail Z83500(1.44Ghz)
    • Windows 10
    • 4G DDR3 / 64G
    • 8 inch 800 * 1280 IPS
    • 3.2V, Large-capacity battery(삼성 SDI) 8900mAh
  • UHF 900 Mhz RFID
    • EPC GEN2 ISO 18000-6B, 6C
    • Impinji R2000 Module
    • 인식거리 3m ~ 5m 이상
  • Key function
    • WLAN 802.11 b/g/N
    • Bluetooth 4.1 + EDR
    • Camera 5M pixel
    • GPS
    • USB 2.0 5v/1.5A, Charging, Data transfer
    • USB 3.0 for LAN, Data transfer
  • Certified
    • RUC 공공기관용 기준통과(안행부, 교육과학부 등)
    • RUC 조달청기준 통과(조달청 물품관리용 S/W 등재)
    • RFID 장비중 유일하게 조달청, 안행부, 교과부 S/W 등재 제품
    • KC 적합성 인증
    • [조달청 물품 목록화 식별 번호]
      RFID리더기 / 물품분류번호 : 43211710, 물품식별번호 : 22477725
      RFID자산관리 솔루션 / 물품분류번호 : 43233001, 물품식별번호 : 22482638
  • Basic component
    Optional component
    • The appearance of the product may be different from the picture.
    • National institutions : Registered as equipment in the commodity management system of the Ministry of Education, Science, Public Procurement Service and the Ministry of Public Administration.
  • RFID 리더기 8인치 특징
    ITEM SPEC
    메인 시스템 운영체제 Windows 10이상
    메인 프로세서 Intel Atom X5 Cherry Trail 283500(1,44Ghz)
    속도 1.33Ghz 이상
    메모리 4G DDR3 이상
    RAM 4G 이상
    외부확장 메모리 마이크로 SD지원
    화면 사이즈 8 inch 이상
    해상도 HD(1024 * 768이상)
    UHF RFID 모듈 UHF RFID 리더기 모듈(Impinji R2000 이상) 8 inch 이상
    LAN(WIFI), 블루투스 802.11 b/g/n, Bluetooth 4.0 + EDR
    I/O 연결 USB 2.0과 USB 3.0 지원 미니 USB, UART, Power 충전
    스피커 스테레오 스피커 (RFID Readering 작업 시 소리가 필수 )
    Battery 3.2V Lithium-ion 10,000mAh이상 (등록된 제품 중 배터리 용량이 가장 큰 모델)
    S/W 케이-에듀파인 물품관리시스템 RFID 단말기 연계기능검사
    모든 국가기관에 높은 점유율을 차지하고 있는 국산 고성능 8인치 일체형 리더기로 조달청 산하 국가기관과 안전행정부 산하 지자체에 2,500대 이상 판매 운영중에 있으며 교육장 시범사업을 시작으로 5년간 80개 교육청및 기관과 학교에 납품 운영중에 있는 국내 1위 레퍼런스를 가지고 있는 위즈앤테크 일체형 리더기 "SRW900"

SRBW900

  • Design type with restrained smooth

    Introducing the first DUAL ANTENNA (Quandrifilar Meander Antenna, YAGI Antenna)

    • Details of a contract using ROUND BOX
    • Distinguish by applying the new WiznTech CI.
  • 제품 개요
    ITEM SPEC
    Range About 6 to 8 m (depending on the type and performance of the tag) Multi Tag Recognition Performance best There are lots of tags to deal with, or places where a large area is located.
    UHF RFID Module Impinji RX2000 UHF( 860~960Mhz. 900MHz),
    EPC Gen2, ISO/IEC 18000-5C, 30db 1W
    Antenna yagi. Circle antenna Choice
    Button RFID / Barcode Intuitive button available (no menu reset required)
    Communication BT4.1 Smart BLE, HID/SPP, Wifi 802.11 b/g/n
  • ITEM SPEC
    Micro Processor Cortex-M4 Core. 120MHZ2(ARM 7)
    Micro Processor Full Color OLED Module 1.8Inch
    RFID Module UHF(860Mhz~960Mhz), 900Mhz(RX 2000),
    EPC Gen2, ISO/IEC 18000~5C, 30db 1W,
    Reading Range : ~7m
    Antenna Circular, Yagi: option
    Barcode Module 2D Barcode Engine
    Bluetooth BT4.1 Smart BLE, HID/SPP
    Wifi IEEE802.11b/g/n
    Memory Flash Memory 1MB, SRAM 256KB(512K)
    External Memory Micro SD Card Supportm, SRAM 2MB
    Communication USB, SPP/HD, OTG/HOST/Slave
    Button Function Key x 5pcs, Barcode, Rfid Button, Reset S/W
    Buzzer -20~70deg magnetic buzzer
    Vibrator 6C, 3.4V/80mA
    LEDs Indicator(Rfid, barcode)
    Battery 18650 Lithium Ion Battery, 3.7V 3500mA Recharge
    Battery Charger 5V, 2A Charger Current
    Certification KC, RUC
    Environment Operation : -20℃~60℃, 보관 : -30℃~70℃, Hummit : 95%, Size : 230mm*90mm(40mm)*22mm
    Accessory handstrips, AC~DC Adapter

SRW900F

  • Product Performance
    • Intel Atom X5 Cherry Trail Z83500(1.44Ghz)
    • Windows 10
    • 2G DDR3/32G
    • 8 inch 800*1280 IPS
    • 3.2V, 8900mAh, 33.82Wh Lithium-ion
  • UHF 900 MHz RFID
    • EPC GEN2 ISO 18000~6B, 6C
    • Impinji R1000 Module
    • 인식거리 2m ~ 3m이상
  • 제품 개요
    • WLAN 802.11 b/g/N
    • Bluetooth 4.0 + EDR
    • Camera 5M pixel
    • GPS
    • USB 2.0 5v/1.5A, Charging, Data transfer
    • USB 3.0 for LAN, Data transfer
  • 인증
    • RUC 공공기관용 기준통과
    • 경북소방본부 260대 납품
  • Basic component
    Optional component
    • The appearance of the product may be different from the picture.
    • National institutions : Registered as equipment in the commodity management system of the Ministry of Education, Science, Public Procurement Service and the Ministry of Public Administration.
  • ITEM SPEC
    Main System Processor Intel Atom X5 Cherry Trail Z83500(1.44Ghz)
    OS Windows 10
    Memory/Flash 2G DDR3/32G
    Display Display 8 inch 800 * 1280 IPS
    Module RFID Reader 900Mhz UHF RFID Reader Module
    Barcode Scanner Barcode 1D / 2D : (OPTION)
    Camera 5.0M
    WIFI 802.11 b/g/n
    Bluetooth Bluetooth 4.0 + EDR
    GPS Support
    G-sensor G sensor 3 axis
    I/O Device Audio Speaker(Built-in stereo speaker 1W)
    Connector USB Support USB 2.0*1 / USB 3.0*1
    USB 2.0 5v/1.5A, Charging, Data transfer
    USB 3.0 for LAN, Data transfer
    Battery Battery 3.2V, 8900mAh, 33.82Wh Lithium-ion
    Environment Storage Temp -10℃ to 60℃, Humidity: 95%
    SD memory 1* micro SD card up to 128GB
    Power Power /Long press, Standby Short Press
    Dimensions, Weight 20.5*12.3*2.8(1.5)mm, 500g

SRBW500

  • Concept
    • Different but reliable images via matching WHITE / BLACK SILVER
    • Suitable for use within 1.5m READINGS distance
    • Consider reliable use and grip
    • Increased usability of button configurations by classifying size and position of sub-functions as main functions
    • Soft volume for easy of user
    • Product size for reliable use
    • Configuring the BUTTON UI considering the importance of use behavior
    • High-light usability with small size
    • Minimum size to fit SPEC on internal module
  • 제품 개요
    ITEM SPEC
    Range Tag recognition is ~ 2m per second and 20 readings per second. Less than 1m distance range to accommodate small retail stores, inventory survey, etc
    UHF RFID Module Phichips Red 500
    UHF(860~960Mhz), 900MHz, EPC Gen2, ISO/IEC 18000~5C, 20db 1W
    Antenna Circle antenna
    Button RFID/Barcode Intuitive button available (no menu reset required)
    Communication BT4.1 Smart BLE, HID/SPP, IEEE802.11b/g/n
    • BARCODE READER

      BARCODE의 리딩이 가능한 카메라 모듈

    • PATTERN

      안정감 있는 파지를 위한 패턴 적용

    • BATTERY COVER

      손이 닿는 위치에 안정적인 사용 및 배터리 교체가 용이한 구조 적용

    • WHITE & BLACK & SILVER COLOR

      제품의 전문적인 이미지와 신뢰성 강조

    • Basic component
  • ITEM SPEC
    Micro Processor Cortex-M4 Core. 120MHZ2(ARM 7)
    Micro Processor Full Color OLED Module 1.8Inch
    RFID Module UHF(860Mhz~960Mhz), 900Mhz(RX 2000), Phichips RED500
    EPC Gen2, ISO/IEC 18000~5C, 30db 1W,
    Reading Range : ~2m
    Antenna Circular, Yagi: option
    Barcode Module 2D Barcode Engine
    Bluetooth BT4.1 Smart BLE, HID/SPP
    Wifi IEEE802.11b/g/n
    Memory Flash Memory 1MB, SRAM 256KB(512K)
    External Memory Micro SD Card Supportm, SRAM 2MB
    Communication USB, SPP/HD, OTG/HOST/Slave
    Button Function Key x 5pcs, Barcode, Rfid Button, Reset S/W
    Buzzer -20~70deg magnetic buzzer
    Vibrator 6C, 3.3 V/80mA
    LEDs Indicator(Rfid, barcode)
    Battery 18650 Lithium Ion Battery, 3.7V 3500mA Recharge
    Battery Charger 5V, 2A Charger Current
    Certification KC, RUC
    Environment Operation : -20℃~60℃, 보관 : -30℃~70℃, Hummit : 95%, Size : 230mm*90mm(40mm)*22mm
    Accessory handstrips, AC~DC Adapter

SRW500

  • Product performance
    • Intel Atom X5 Cherry Trail Z83500(1.44Ghz)
    • Windows 10
    • 2G DDR3 / 32G
    • 8 inch 800 * 1280 IPS
    • 3.2V, 8900mAh, 33.82Wh Lithium-ion
  • UHF 900 Mhz RFID
    • EPC GEN2 ISO 18000-6B, 6C
    • Phychips R500
    • 인식거리 10cm ~ 2m
  • Key function
    • WLAN 802.11 b/g/N
    • Bluetooth 4.0 + EDR
    • Camera 5M pixel
    • GPS
    • USB 2.0 5v/1.5A, Charging, Data transfer
    • USB 3.0 for LAN, Data transfer
  • Certified
    • RUC 공공기관용 기준통과
  • Basic component
    Optional component
    • The appearance of the product may be different from the picture.
    • National institutions : Registered as equipment in the commodity management system of the Ministry of Education, Science, Public Procurement Service and the Ministry of Public Administration.
  • 제품 사양
    ITEM SPEC
    Main System Processor Intel Atom X5 Cherry Trail 283500(1,44Ghz)
    OS Windows 10
    Memory/Flash 2G DDR3 / 32 G
    Display Display 8 inch 800 * 1280 IPS
    Module UHF RFID Reader Module UHF(860Mhz~960Mhz), 900Mhz, RED500 EPC Gen2, ISO/IEC 18000~5C, 25db 1W
    Barcode Scanner Barcode 1D / 2D
    Camera 5.0M
    WIFI 802.11 b/g/n
    Bluetooth Bluetooth 4.0 + EDR
    GPS Support
    G-sensor G sensor 3 axis
    I/O Device Audio Speaker(Built-in stereo speaker 1W)
    Connector USB Support USB 2.0*1 /USB 3.0*1
    USB 2.0 5v/1.5A, Charging, Data transfer
    USB 3.0 for LAN, Data transfer
    Battery Battery 3.2V, 8900mAh, 33.82Wh Lithium-ion
    Environment Storage Temp -10℃ to 60℃, Humidity: 95%
    SD memory 1* micro SD card up to 128GB
    Power Power /Long press, Standby Short Press
    Dimensions, Weight 20.5*12.3*2.8(1.5)mm, 350g

SRR900

  • Product performance
    • CPU Samsung S5PV210
    • RAM 512MB DDR2
    • Storage 256MB
    • 240 * 320 3.5' Touch Screen
    • Windows CE 6.0 R3
  • UHF 900 Mhz RFID
    • EPC GEN2 ISO 18000-6B, 6C
    • 인식거리 3m 이상
  • Key function
    • WLAN 802.11 b/g
    • Bluetooth 2.0 + EDR
    • Camera 3M pixel
    • GPS
    • CDMA Rev.A
    • 외장 SD Card 8GB 지원
  • Barcode Scanner
    • 752 * 480 CMOS sensor
    • Linear, 2D, Postal, OCR
    • Illumination LED, Aiming
    • [조달청 물품 목록화 식별 번호]
      RFID리더기 / 물품분류번호 : 43211710, 물품식별번호 : 22477725
      RFID자산관리 솔루션 / 물품분류번호 : 43233001, 물품식별번호 : 22482638

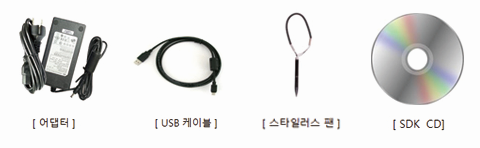

  • Basic component
  • Optional component
    • The appearance of the product may be different from the picture.
    • National institutions : Registered as equipment in the commodity management system of the Ministry of Education, Science, Public Procurement Service and the Ministry of Public Administration.
  • 제품 사양
    ITEM SPEC RELATIVE HEIGHT
    Main System Processor Samsung S5PV210 Max 1.0 Ghz
    OS Windows Embedded CE 6.0 R3
    Memory DDR2 SDRAM 512 MB
    Storage NAND Flash Memory 256 MB
    Display Display 240 * 320 Pixel 3.5 Inch TFT LCD
    Module RFID Reader 900Mhz UHF RFID Reader Module 4Wire Touch Interface
    Barcode Scanner Barcode 1D / 2D Honeywell IM-5000
    Camera 3M CMOS
    WIFI 802.11 b/g
    Bluetooth Bluetooth 2.0 + EDR MOVON MD-6RF
    GPS GPS & Galileo Engine
    I/O Device Keypad Keypad(Front 20 key, Side 4 key)
    Audio Speaker(AMP), Earphone(2.5mm Stereo) Speaker 2W
    Connector TTA24 USB, UART, Power Active Sync, Charging
    Battery Battery Lithium-ion 5200mAh(2CELL 2600mAH)
    Environment Characteristics Storage Temp -10℃ to 60℃
    Humidity 95%
    Drop Spec 1.5m IP 54
    Dimensions 163mm * 38mm * 75mm (W * D * H)
    Weight 500g
